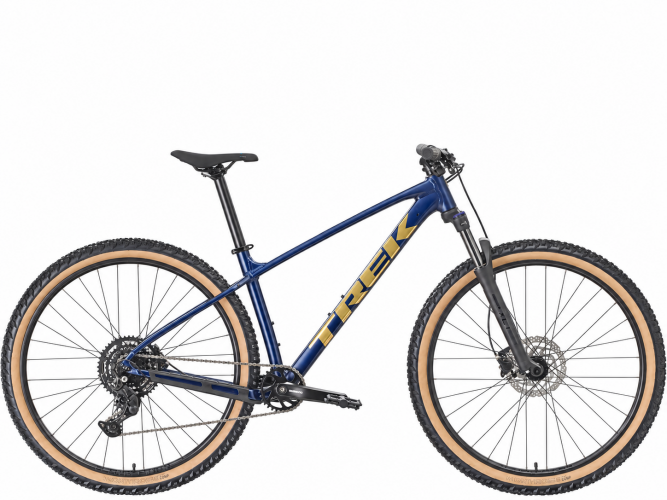

Marlin 5 je svestran bicikl spreman za vožnju po stazama i savršen za svakodnevne avanture, kako na terenu tako i izvan njega. Opremljen je okvirom prilagođenim vožnji po stazama, amortizirajućom vilicom, Shimano CUES prijenosom s 9 brzina te prihvatima za nosač tereta i nogaru. Idealan je izbor za vozače koji vole vožnju po stazama, ali i za sve koji traže udoban i stabilan bicikl za svakodnevnu vožnju, uz robusnost pravog brdskog bicikla.

OKVIR I VILICA

OKVIR:

Veličina: XS
Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

Veličina: S, M, ML, L, XL, XXL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

VILICA:

Veličina: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5'' wheel, 100 mm QR, 80 mm travel

Veličina: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5'' wheel, 100 mm QR, 100 mm travel

Veličina: M, ML, L, XL, XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29'' wheel, 100 mm QR, 100 mm travel

KOTAČI

PREDNJA GLAVČINA: Formula DC-20, alloy, 6-bolt, 100x5mm

PREDNJI BRZI STEZAČ: Trek Thru-Skew

STRAŽNJA GLAVČINA: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm

STRAŽNJI BRZI STEZAČ: 173x5mm QR

OBRUČ: Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve

ŽBICE: 14g stainless steel, black

GUME:

Veličina: XS, S
Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''

Veličina: M, ML, L, XL, XXL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''

MAKSIMALNA VELIČINA GUME: Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer

POGON

RUČICA MJENJAČA: Shimano U4000, 9-speed

STRAŽNJI MJENJAČ: Shimano CUES U4000

POGON:

Veličina: XS, S, M, ML
Shimano CUES U4001, 32T, 52mm chainline, 170mm length

Veličina: L, XL, XXL
Shimano CUES U4001, 32T, 52mm chainline, 175mm length

LEŽAJ POGONA: Shimano, 73mm, threaded cartridge, 122.5mm spindle

KAZETA: Shimano LINKGLIDE LG300, 11-46, 9 speed

LANAC: Shimano LG500, 9/10/11 speed

PEDALE: Nylon platform

KOMPONENTE

SJEDALO: Bontrager Verse Short, stainless steel rails

CIJEV SJEDALA:

Veličina: XS, S, M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length

Veličina: ML, L, XL, XXL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length

UPRAVLJAČ:

Veličina: XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width

Veličina: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width

Veličina: M, ML, L, XL, XXL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width

GRIPOVI: Trek Line Comp, nylon lock-on

LULICA UPRAVLJAČA:

Veličina: XS, S
Bontrager Comp, 31.8mm, 7 degree, 35mm length

Veličina: M, ML, L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length

Veličina: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length

Veličina: XXL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length

LEŽAJ VILICE: Semi-integrated, 1-1/8''

KOČIONI DISK:

Veličina: XS, S, M, ML, L, XL, XXL
Shimano RT26, 6-bolt, 160mm

Veličina: M, ML, L, XL, XXL
Shimano RT26, 6-bolt, 180mm

SET KOČNICA: Shimano MT200 hydraulic disc

TEŽINA

TEŽINA: M - 15.10 kg / 33.29 lbs

OGRANIČENJE TEŽINE: Maksimalna dopuštena ukupna težina bicikla, vozača i tereta iznosi 136 kg.

Specifikacije, oprema i stvarna težina bicikla mogu odstupati ili se promijeniti bez prethodne najave.
