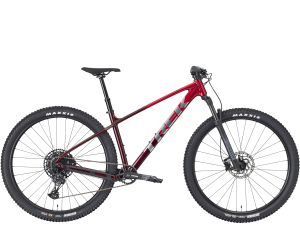

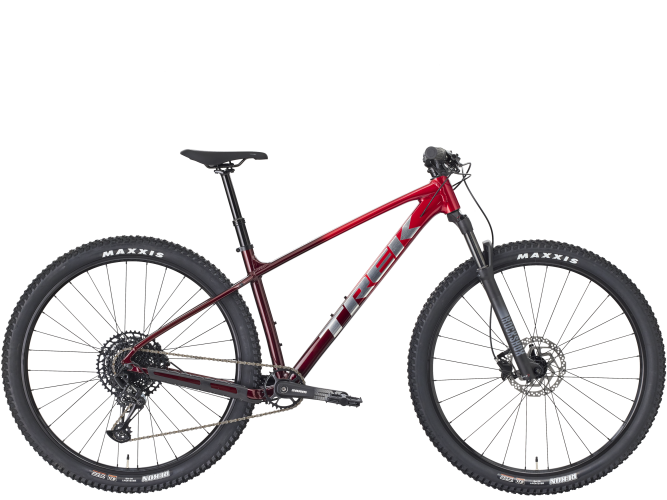

Trek Marlin 7 je svestran brdski bicikl koji pruža sigurnost i kontrolu na MTB stazama, ali je jednako praktičan i za svakodnevnu vožnju. Odličan omjer cijene i performansi donosi RockShox Judy Silver zračna vilica sa 100 mm hoda, koja učinkovito upija neravnine, te SRAM NX Eagle pogon s 12 brzina i širokim rasponom prijenosa.

Zahvaljujući modernoj geometriji okvira, širokim Maxxis Rekon gumama i hidrauličnim Shimano disk kočnicama, Trek Marlin 7 pruža stabilnu i sigurnu vožnju na šumskim stazama, makadamu i zahtjevnijem terenu. Integrirani prihvati za nosač tereta i nogaru dodatno povećavaju njegovu praktičnost za svakodnevnu upotrebu.

OKVIR I VILICA

OKVIR:

Veličina: XS
Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

Veličina: S, M, ML, L, XL, XXL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

VILICA:

Veličina: XS, S
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel

Veličina: M, ML, L, XL, XXL
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel

KOTAČI

PREDNJA GLAVČINA: Formula DC-20 LW, alloy, 6-bolt, 100x5mm

PREDNJI BRZI STEZAČ: 116x5mm QR

STRAŽNJA GLAVČINA: Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5mm

STRAŽNJI BRZI STEZAČ: 173x5mm QR

OBRUČ:

Veličina: XS, S, M, ML, L, XL, XXL
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve

Veličina: M, ML, L, XL, XXL
Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve

GUME:

Veličina: XS, S
Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.40''

Veličina: M, ML, L, XL, XXL
Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40''

TRAKA OBRUČA: Bontrager TLR

MAKSIMALNA VELIČINA GUME: Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer

POGON

RUČICA MJENJAČA: SRAM SX Eagle, 12 speed

STRAŽNJI MJENJAČ: SRAM NX Eagle, 12 speed

POGON:

Veličina: XS, S, M
SRAM SX Eagle, 30T steel ring, 49mm chainline, 170mm length

Veličina: ML, L, XL, XXL
SRAM SX Eagle, 30T steel ring, 49mm chainline, 175mm length

LEŽAJ POGONA: Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle

KAZETA: SRAM PG-1210 Eagle, 11-50, 12 speed

LANAC: SRAM SX Eagle, 12 speed

PEDALE: Nylon platform

KOMPONENTE

SJEDALO: Bontrager Verse Short, stainless steel rails

CIJEV SJEDALA:

Veličina: XS, S
TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length

Veličina: M
TranzX JD-YSI34, 125mm travel, internal routing, 31.6mm, 405mm length

Veličina: ML, L
TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length

Veličina: XL, XXL
TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length

UPRAVLJAČ:

Veličina: XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width

Veličina: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width

Veličina: M, ML, L, XL, XXL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width

GRIPOVI: Trek Line Comp, nylon lock-on

LULICA UPRAVLJAČA:

Veličina: XS, S
Bontrager Comp, 31.8mm, 7 degree, 35mm length

Veličina: M, ML, L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length

Veličina: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length

Veličina: XXL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length

LEŽAJ VILICE: Semi-integrated, 1-1/8''

KOČIONI DISK:

Veličina: XS, S, M, ML, L, XL, XXL
Shimano RT26, 6-bolt, 160mm

Veličina: M, ML, L, XL, XXL
Shimano RT26, 6-bolt, 180mm

SET KOČNICA: Shimano MT200 hydraulic disc

MAKSIMALNA VELIČINA KOČIONOG DISKA: Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer

TEŽINA

TEŽINA: M - 14.15 kg / 31.2 lbs

OGRANIČENJE TEŽINE: Maksimalna dopuštena ukupna težina bicikla, vozača i tereta iznosi 136 kg.

Specifikacije, oprema i stvarna težina bicikla mogu odstupati ili se promijeniti bez prethodne najave.
